NAD Master Series
NAD Master Series.
The best that NAD has created in decades.

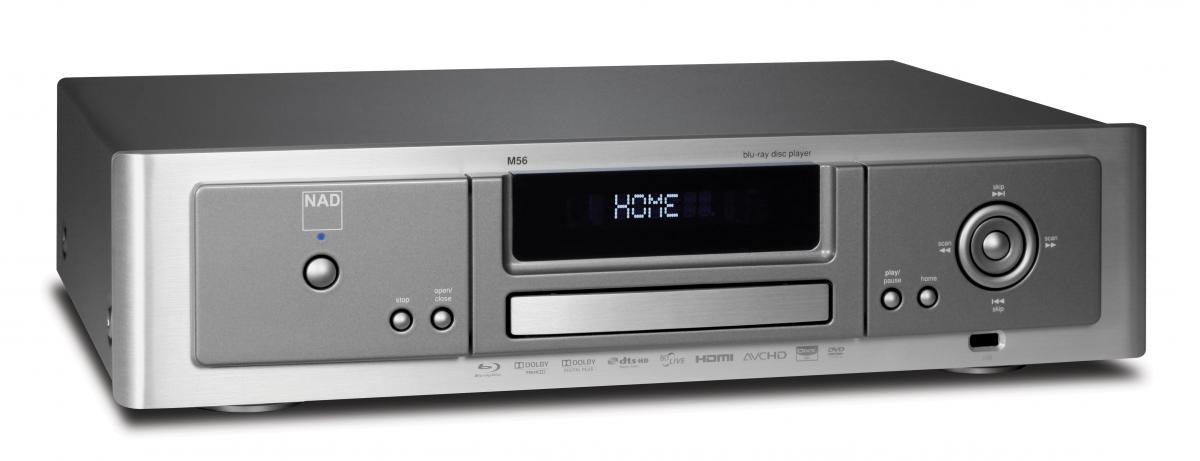

NAD M56 Blu-ray Disc Player
The M56 brings NAD’s penchant for performance to the exciting Blu-ray Disc format. As part of the NAD Masters Series, this new player exhibits a masterful level of industrial design and a remarkably solid build quality that you simply won’t find in other Blu-ray players. Brimming with the latest features like BD Live Network connectivity, the M56 offers a true High Definition source for digital home theatre systems.

This premium Blu-ray player is the perfect signal source for the most sophisticated HD home theatres. With full support for the latest HD audio and video formats, as well as compatibility with your existing DVD and CD collections, the M56 will always deliver the best possible performance.

Blu-ray Disc Features

* Full support for BD Live Network Connectivity (Profile 2.0), Picture-in-Picture, Deep Colour and xvYCC extended colour space.

Media Streaming

* Expand your home theatre by connecting to your home network through the built-in Wi-Fi or ethernet port.

Super Fast Loading

* Stop waiting to watch your favourite movie with instant open and only seconds to get picture, sound, and navigation.

Stunning Video Performance

* Supports 1080p/24 video resolution. Even standard definition DVDs get a boost from NAD’s upscaling engine with resolution up to 1080p over HDMI.

Studio Master Audio Performance

* Onboard decoding for the latest lossless high bit rate music formats from Dolby TrueHD and DTS Master Audio 7.1.

Analogue 7.1 Channel Audio Output

* Reproduce the latest HD audio formats with any AV receiver that offers 5.1 or 7.1 input.

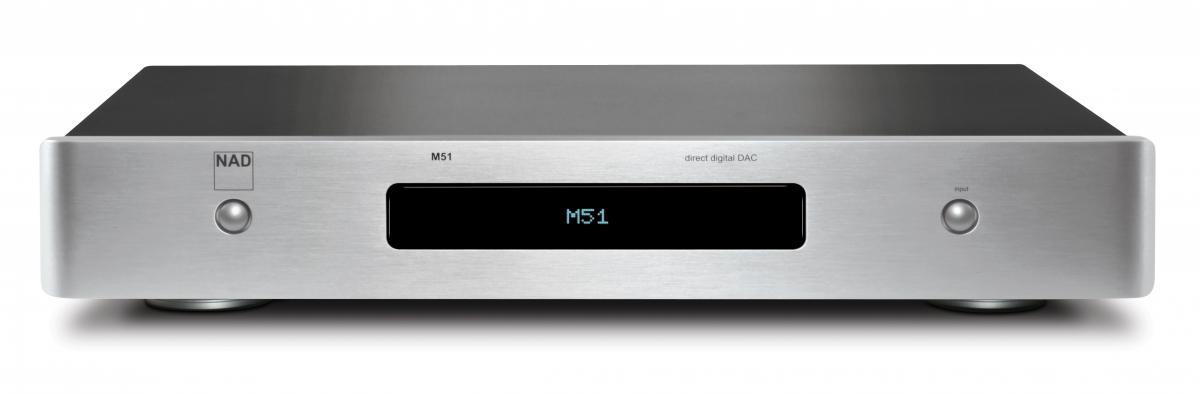

NAD M51 Direct Digital DAC
Digital Innovation

NAD's Direct Digital technology is unique in both its extreme precision and in its speed. This advancement was first introduced in the NAD M2 Direct Digital Amplifier to worldwide acclaim. Now this innovative Direct Digital technology is available as a standalone DAC. Instead of using the Direct Digital processor to drive a high power output stage, we employ a line level analogue output that will perfectly interface with any analogue system with the M51 Direct Digital DAC.

How Direct Digital Operates

NAD's technology uses a very powerful processing engine that operates at much higher speed and with much greater accuracy than typical Digital-to-Analogue converters. Running at 108MHz, the M51 resamples the incoming pulse code modulated (PCM) signal and converts it to a pulse width modulation signal (PWM) with a sampling rate of 844kHz. Operating in a differential mode with double precision, the M51 has state-of-the-art specifications for low noise and freedom from distortion. The extreme headroom afforded by the 35-bit architecture allows for a DSP-based volume control that does not reduce resolution. Even with 24-bit high definition signals, the output can be attenuated by 66dB (very, very quiet) before bit truncation begins.

Pure Performance

The incredible precision of the M51's processing engine gives music a vibrancy and transient accuracy that must be heard to be appreciated. The conversion process from PCM to PWM completely eliminates any jitter present on the incoming signal; again, offering state-of-the-art performance in this most important parameter. Due to the very high clock speed and mathematical precision of our reconstruction filters, the resulting audio signal is totally free of digital artifacts like ringing. A Pure Class A analogue stage with very low output impedance provides the perfect interface to your favourite amplifier. Also, both balanced and single-ended outputs are available.

Next Generation Connectivity

While the M51 includes the industry standard SPDIF, AES/EBU, Optical and Coaxial inputs, it also includes the latest USB technology called USB Audio Class 2. USB Audio Class 2 supports sample rates of 192kHz releasing the previous limitation of USB at 96kHz. A device USB port is included allowing direct connection of a PC or Mac.

The M51 offers two HDMI inputs and one output with video pass through. This opens up the possibility of using the M51 Direct Digital DAC as the heart of a "Video 2.0" system using the mandatory two-channel linear PCM soundtrack from Blu-ray or DVD to make a compelling two-channel high definition theatre presentation. Many symphony orchestras and some specialty music labels are also released in HD recordings on Blu-ray or DVD. The M51 is fully 3D video compatible but there is no surround sound decoding or video processing.

More than Just a DAC

M51 is a fully functional digital preamp with seven digital inputs and one of the world's best volume controls. As a 'preamp' it is totally noise and distortion free because all switching and volume control is done in the digital domain. There are no analogue circuits except for the Class A buffer at the output of the DAC. While input selection is available from a front panel control, volume can only be selected via remote control. The supplied IR remote also features controls for NAD's matching M50 Digital Music Player. Serial control is available via RS-232 IR and 12V trigger inputs allow the M51 to fully integrate with advanced automation systems.

The M51 introduces many 'firsts' for the DAC product category: first to support HDMI, first to support USB Audio Class 2 with support for 192kHz, the first to use digital error correction, and the first 35-bit architecture to be found in a DAC.

Whether you want to get into computer audio, 'Home Cinema 2.0' or just want to upgrade your CD player, the M51 Direct Digital DAC will get the best possible performance from every digital format. All this innovation, performance and flexibility come with NAD's legendary sound quality and affordability.

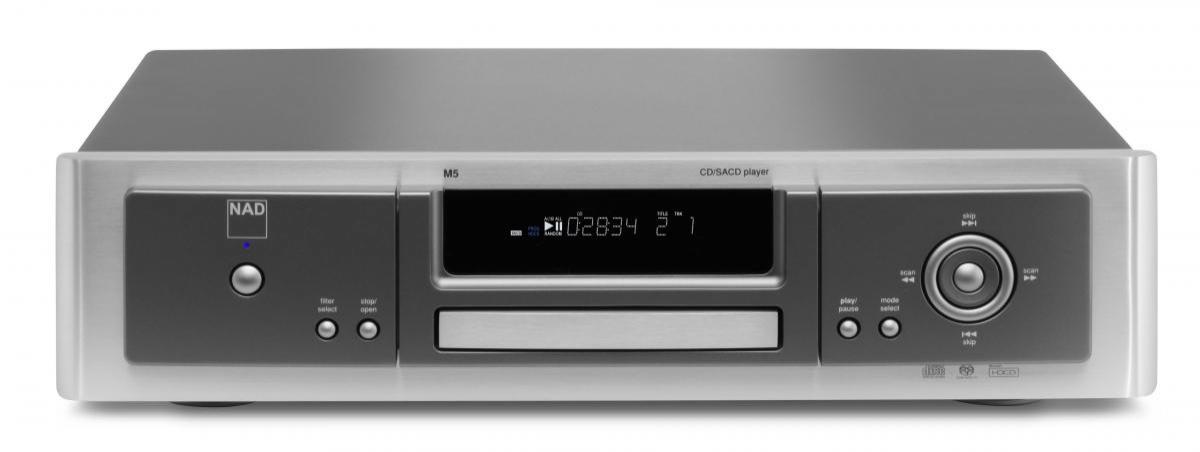

M5 CD/SACD Player

* Plays SACD, CD, CD-R, CD-RW
* AES/EBU balanced digital out for PCM sources
* Coax and TosLink PCM digital audio outputs
* Separate 2 channel and 5.1 channel analogue outputs
* Balanced 600 Ohm Stereo Outputs
* HDCD, MP3, and WMA decoding
* Bass Management for SACD
* 24 bit 192kHz DACs with DSD mode
* NAD Pure Class A Discrete Gain Modules
* Separate power supplies; switch mode for digital circuits, linear for audio circuits.
* Composite Video Output (switchable On/Off)
* RS-232 port
* IR Input
* 12V Trigger Input
* Detachable AC cord
* M5 Remote Control

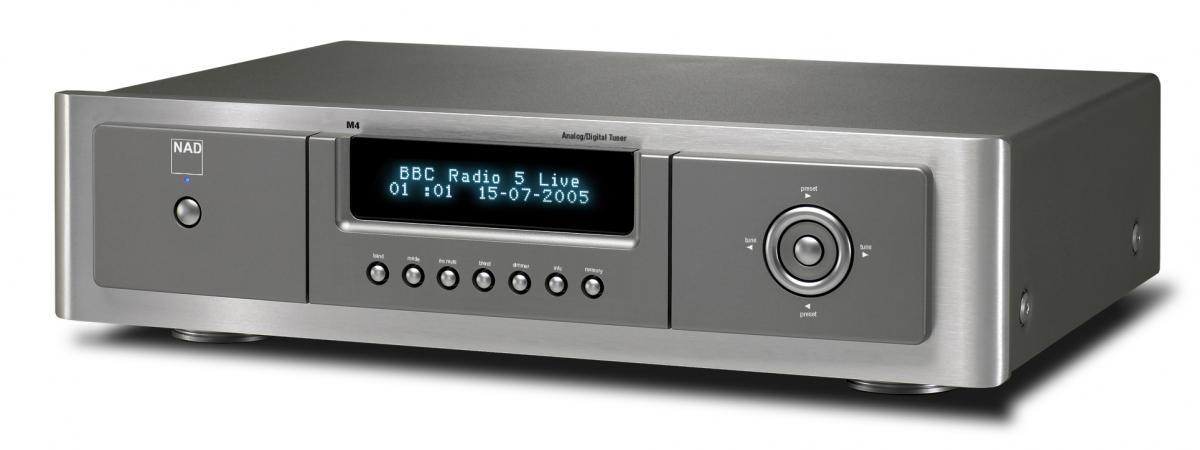

NAD M4 Analogue Digital Tuner
The NAD M4 is the most advanced tuner ever developed by NAD. Matching the style, build quality and performance of our award winning Masters Series components, the M4 performance is at the outer limits of radio broadcast quality. Combining a highly sensitive FM/AM tuning section with the latest digital broadcast technology, the M4 extracts maximum sound quality from every radio format.

* 40 Preset Station Memory
* RDS function displays Station ID and Radio Text from broadcast compliant stations
* FM Mute eliminates inter-station tuning noise
* FM Blend reduces noise of distant or "fringe" stations by reducing high frequency separation
* High sensitivity AM tuner
* Supports DAB Band III and L Band (230V version)
* XM Ready input for external XM Satellite module (120V version)
* Audiophile quality Burr Brown Digital to Analogue converters
* Audio specific Burr Brown OP Amps
* Separate power supplies for Digital Control and Audio stages
* RS-232 port interfaces with external control systems (Crestron and AMX certified)
* Rear panel IR Input allows easy interface to external IR sensors
* NAD Build Artistry construction
* M4 Remote Control

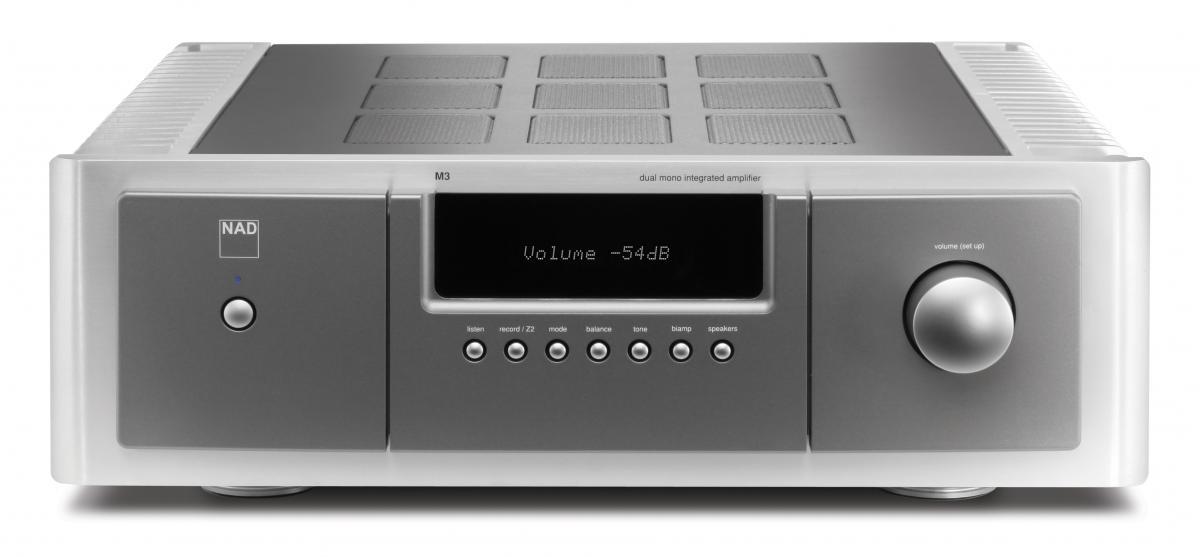

NAD M3 Dual Mono Integrated Amplifier
With 2-channels of 180-watts of pure power, we're quite certain the M3 meets the outline of our technical brief which reads, "The industrial design must create a physical presence that is powerful, dynamic and solid, yet refined and elegant." We're certain we've met the challenge of this outline as well as your personal requirements.

The M3 includes an entire host of convenient features to allow seamless integration into virtually any listening application. The M3 offers internal switching for two pairs of speakers and tone controls as well as a second Zone 2 output with independent commands and even its own remote control.

Front panel controls allow for direct access of all features as well. Performance features are many, and include a precision volume attenuator with 0.5dB steps and a range of 87.5db, a remote balance control with 0.5dB steps, and a Mode control which allows stereo, left only, right only and mono settings. Tone controls offer bass and treble adjustments as well as a "spectral tilt" option that is highly effective at correcting the tonal balance of many recordings by simultaneously increasing the bass and decreasing the treble (and vice versa) to create a warmer or cooler balance. There are also a second set of preamp outputs and a switchable high-pass filter for the internal amplifier, to allow easy implementation of any active subwoofer or for bi-amplification.
M3 Dual Mono Integrated Amplifier Features

* 180 watts X 2, 10Hz - 20kHz, with 0.03THD, both channels driven into 8 or 4 Ohms
* Dynamic power of 280 watts at 8 Ohms, 480 watts at 4 Ohms, and 785 watts at 2 Ohms
* PowerDrive
* Dual stage high current/high voltage power supply
* Dual Mono topology
* Twin NAD Custom-Made "Holmgren" Toroidal transformer
* Ultra precise multi-stage electronic volume control using discreet resistors
* 7 inputs, including 1 balanced XLR
* Tape/Zone 2 output (independent source selection, no volume control)
* Speakers A B with custom 5 way binding posts
* Biamp mode with selectable 40, 60, 80, 100 Hz crossover frequency on Pre Out 1
* Powered subwoofer
* Main Amp input
* Remote Bass and Treble controls with Spectral Tilt option
* Remote Balance control with 0.5 dB steps
* Selectable Mono, Left, Right, and Stereo options
* RS-232 interface for advanced custom installations
* 12V Trigger for advanced control options, 1 Out
* 3.5mm IR Control jacks, 1 In and 2 Out
* Detachable AC cord
* M3 System Remote Control
* ZR 3 second zone remote

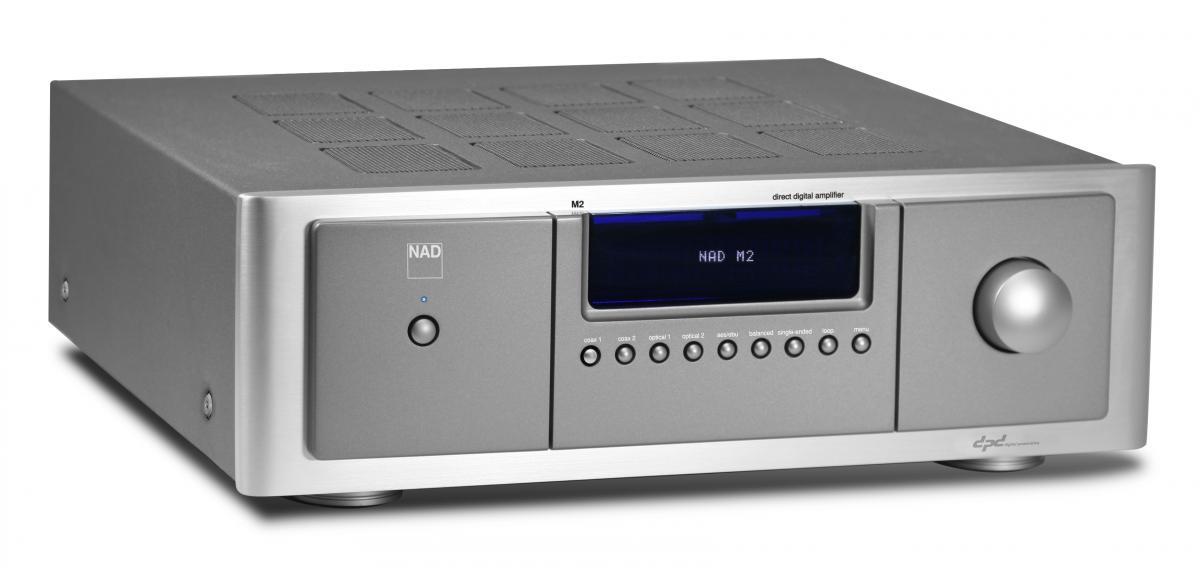

NAD M2 Direct Digital Amplifier
The NAD M2 Direct Digital Amplifier represents a new level of amplifier performance. Combining the ultra low distortion and noise levels of the finest linear Class A and Class AB amplifiers with the efficiency and streamlined signal path of the digital amplifier, the M2 is the first implementation of a new amplifier technology called Direct Digital Feedback. Co-developed with UK based Diodes Zetex Semiconductor, and using a unique implementation of their patented DDFA architecture, the M2 redefines what is possible with digital amplifier technology.

The M2 Direct Digital Amplifier represents the culmination of a decade long NAD research project, capped by three years of intense development. The result fully justifies the investment. We believe that the M2 sets new benchmarks for both measured performance and subjective musical quality.

M2 Direct Digital Amplifier Features
* Direct Digital Amplifier
* 2 X 250W Continuous Power at 8 and 4 Ohms
* >500W IHF Dynamic Power
* <0.004% THD 20Hz – 20kHz from 500mW to 250W
* >120dB Dynamic Range
* 40uV Residual Noise
* >2000 Damping Factor at 50Hz +0/-0.5dB Frequency Response 20Hz – 20kHz, -3dB >85kHz
* Channel Separation >90dB @ 1kHz, 80dB @ 10kHz
* Digital PowerDrive
* Digital Soft Clipping (switchable)
* 5 Position Digital Impedance

Compensation Filter

Analogue-to-Digital Conversion
* A/D Conversion for Analogue Inputs
* Multi-bit Delta/Sigma 24/216kHz
* 0.0004% THD
* Sample rate 32kHz - 192kHz
* 124dB S/N Ratio
* High Resolution 120dB Digital Attenuator

Ins and Outs

* Inputs Digital SPDIF: AES/EBU, Coaxial X 2, Optical X 2
* Inputs Analogue: Balanced, Single Ended
* Processor Loop: SPDIF Optical (Mac PC compatible) out/in
* 2 Sets of Speaker Binding Posts to facilitate Bi-wiring
* Remote Control

Control Options

* RS-232 serial data port
* IR Input
* 12V Trigger Input and Output
* <1W Standby Consumption
* 90% Amplifier Efficiency

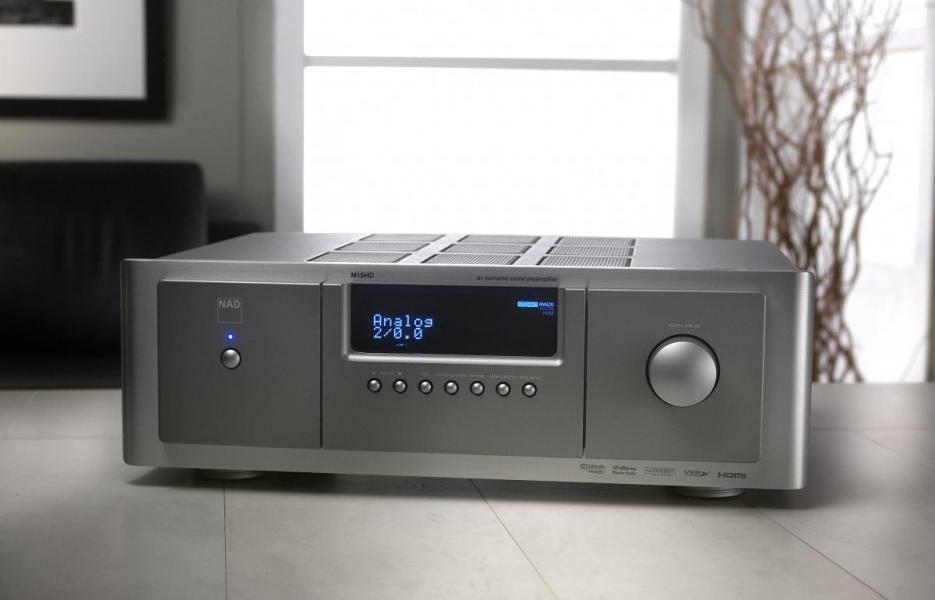

NAD M15 HD AV Surround Sound Preamplifier

When the M15 was introduced in 2005 it redefined the performance and value expectations for consumers worldwide. With a string of rave reviews and awards including the prestigious EISA Award for "Best Home Cinema", the M15 has become a classic in its own right. There is now a new generation of video source and display products that support high resolution video and high definition audio. The new M15 HD has been re-engineered to take full advantage of these new High Definition formats. We have also added some interesting new features to enhance your enjoyment and protect your investment.

* 4 Digital HD AV Inputs with HDMI Repeating
* 4 Analogue AV Inputs with Composite and S-Video
* 3 HD Component Video Inputs
* 4 Coax and 4 Optical Digital inputs
* 3 Analogue Stereo Inputs
* 7.1 Direct Analogue Input
* Dolby TrueHD, DTS HD Master Audio, Linear PCM will run at 192kHz; Dolby Digital Plus, DTS HD High Resolution Audio, DTS 96/24
* DTS Neo:6 [Cinema/Music], Dolby ProLogic IIx [Movies/Music], EARS, Enhanced Stereo
* Audyssey MultEQ Pro
* Video upconversion; Composite and S-Video inputs available on Component Video output and HDMI output
* Sigma VXP Image Processing with HD scaling to 1080p
* MP Data Port for connection to NAD Dock for iPod
* Lip sync compensation – (option to 200mS)
* Flexible Bass Management including individual crossover frequencies for Front, Centre, and Surround speakers
* Tone controls
* RS-232 interface for advanced custom installations
* 12V Triggers for advanced control options, 1 In and 3 Out
* 3.5mm IR Control jacks, 1 In and 4 Out
* Zone 2 Independent AV output
* Zone 3 and Zone 4 Independent Audio output
* Dual differential 24-bit, 192 kHz DACs
* Dynamic Headroom Scaling for optimum resolution and S/N ratio for all program and decoding combinations
* Switch Mode Power Supply for Digital Audio and Video Stages
* Linear Power Supply with Custom C-Core Transformer for Analogue Audio Stages
* Detachable AC cord
* Optional Audyssey Kit
* 8 Device HTRM Illuminated Learning Remote control with LCD display
* ZR 5 Second Zone Remote
