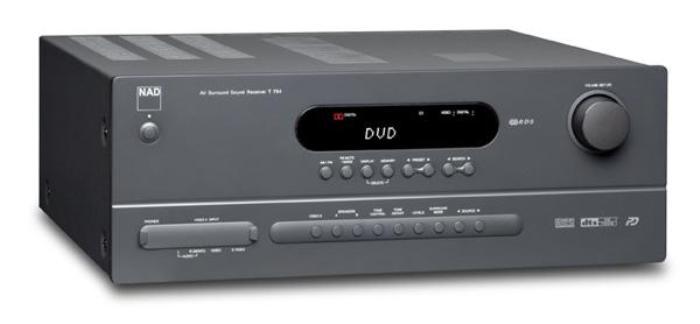

NAD T754 A/V Receiver
6 x 70W Minimum Continuous Power into 4 / 8 ohms, all channels driven simultaneously
150W, 200W, 225W IHF Dynamic Power into 8, 4 and 2 ohms
PowerDrive™ amplifier technology
NAD Soft Clipping™
6 A/V Inputs all S-Video and Composite, 2 full tape loops
Component Video on 2 Inputs and 1 Output, HDTV Compatible
1 audio tape input and output
6 Digital Inputs, 4 Coaxial, 2 TOS Link freely assignable

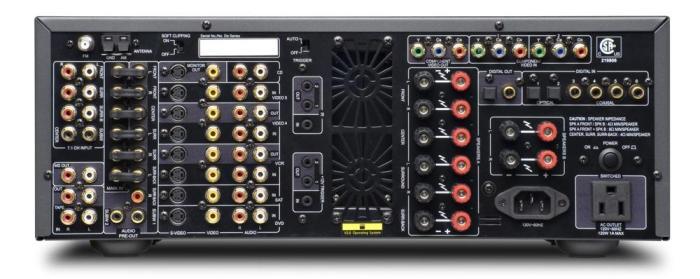

NAD T754 A/V Receiver, Rear Panel
2 Digital Outputs, 1 Coaxial, 1 TOS Link
7.1 Analogue Input (for DVD Audio)
Speaker A + B switching (Speakers B stereo only)
Zone 2 audio pre-out with independent source and volume
ZR 2 second Zone remote included with discrete codes for independent zone
IR input
2 x IR outputs
2 x 12V output triggers, 1 x 12V input
Preamp Outputs for all 7.1 channels (2 Subwoofers)
Amplifier Input for 6 Power Amps
RDS FM/AM Tuner with 30 direct access presets
HTR-2 Remote Control
T 747 A/V Surround Sound Receiver
7 X 60 watts Simultaneous Full Disclosure Power
7 X 120 watts Minimum Continuous Power (FTC)
Dolby TrueHD and DTS HD Master Audio lossless decoding
Dolby Digital Plus, ProLogic IIx, DTS HD High Resolution Audio, Digital Surround 96/24, Neo:6
EARS surround, Enhanced Stereo, Dolby Virtual
5 Custom AV Presets allow instant recall of unique speaker settings, listening mode, and tone settings
AM/FM Tuner with 60 Presets (30 AM and 30 FM presets)
Optional DAB (230V) or XM (120V) Tuner Modules
4 HDMI Inputs with Repeater Function
Analogue Video Inputs are converted to digital HDMI Output
SD signals are converted to HD up to 1080p with onboard Faroudja DCDi Processing

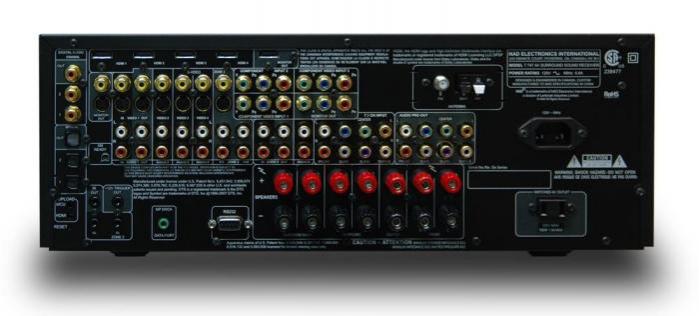

NAD T 747 A/V Surround Sound Receiver, Rear Panel
6 Analogue Audio Inputs, plus 7.1 analogue input
2 Optical and 2 Coax Digital Audio Inputs
4 Analogue Video (S-Video and Composite) and 3 Component Video inputs
Front Panel Inputs for games, cameras, etc. include S-Video and Composite Video, Analogue Audio, Optical Digital Audio
2 Digital Outputs; 1 Optical, 1 Coax
Zone 2 AV Output with independent Source and Volume setting
2 IR Inputs, 1 IR Output
RS-232 port interface to advanced control systems
12V Trigger Out
AVR 3 Remote; 4 Device Control with NAD code library
ZR 5 Second Zone Remote

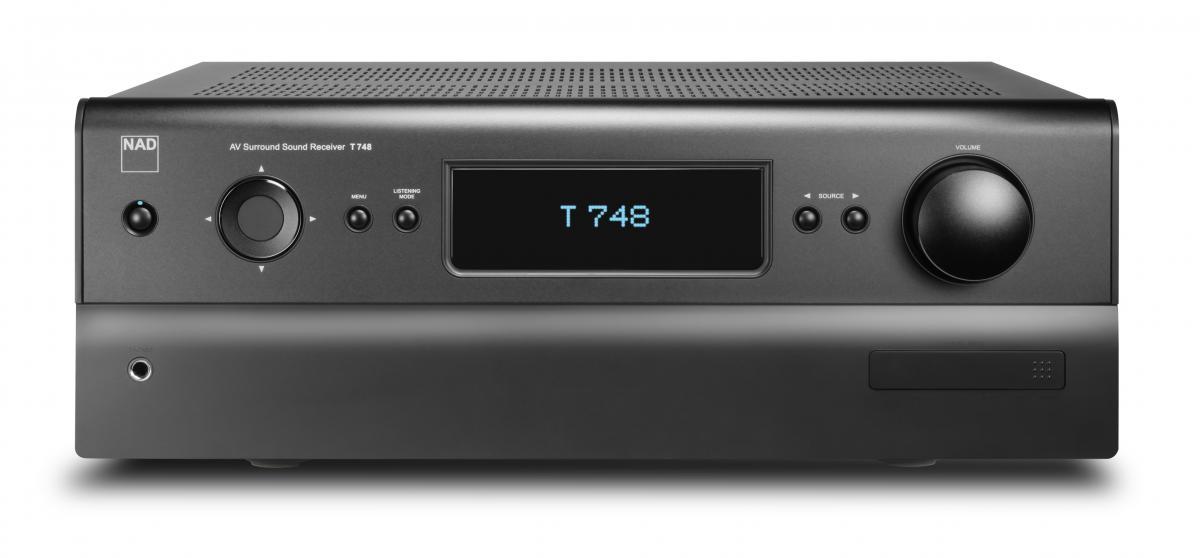

NAD T 748 A/V Surround Sound Receiver
The new user-friendly T 748 AV Receiver is a performance driven receiver that supplies everything you need to enhance your home cinema experience at an affordable and cost efficient level. The T 748 includes seven channels of ultra low distortion power, support for all the latest surround sound formats and digital video technology, and all the features to make setup and user control effortless. The T 748 also includes five powerful audio-video presets optimizing your ability to fully customize various source materials with specific speaker settings and surround modes. Even connect your iPod with our IPD 2 Dock and follow your favourite songs on the T 748’s on-screen video display. The T 748 does it all; and most importantly, does it all without costly or complex features that increase price.


Performance Driven

Like all NAD products, the NAD T 748’s primary focus is performance. We put our heart and soul into each and every one of our products with our goal being your enjoyment. The T 748 has everything needed for a sublime home cinema experience without any extraneous or overly complicated features. With seven channels of ultra low distortion power, the T 748 creates a seamless and immersive sound field that captivates and astounds with today’s latest HD soundtracks.

Complete Video

The T 748 features the latest in digital video technology including 3D video at resolutions up to 1080p. Legacy analogue video is converted to HDMI for simple one wire connection of all your video sources. Audio Return Channel and Consumer Electronic Control are also supported on HDMI, allowing seamless integration with all your digital video devices. The T 748 locks on to the source component’s video resolution and passes it through to the video display without adding or subtracting anything.

Powerful Audio

All popular surround sound formats are decoded using the latest generation of high speed DSP, including Dolby TrueHD and DTS Master Audio. Stereo source material can be converted to surround sound using NAD’s renowned EARS surround mode, praised by reviewers for its natural sound quality. A preamp output allows for more power to be added in the future by simply connecting one of NAD’s power amps.

Control and Command

NAD has created a simple user interface that is incredibly flexible but very easy to use. Each source component has its own customized setup that is memorized and recalled every time it is selected for viewing. In addition, powerful AV Presets allow custom setups for different types of program material that can specify speaker settings and surround modes to your exact taste. Inputs can even be renamed to match your particular components. A supplied wireless remote works with an On-Screen video display to make setup and control easy. There are also connections provided for external control systems like Crestron, AMX, Neuvo, etc.
